Solar 10K

Welcome

READ THIS FIRST!

Hope you shine as bright as the sun and may your powerbank recharge itself super fast. Before you dive in, check out this user manual (crafted with love just for you) thoroughly and get ready to power up like a pro!

- The Copywriter

Package Contains:

• 1 N Solar 10K Power Bank
• 1 N Charging Cable
• 1 N Rating Card

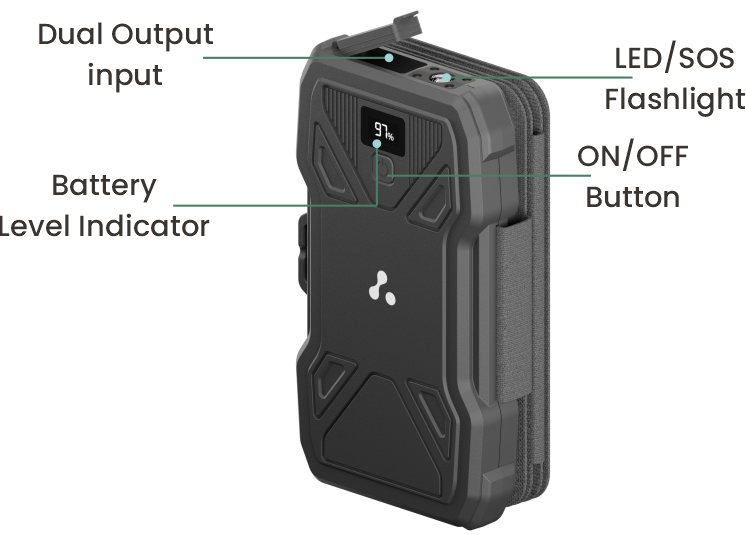

Product Overview:

Operating Instructions

How to Charge Devices with the Powerbank

• Connect your device to a USB or Type-C port of the Power Bank with a good quality charging cable.
• While connecting, the digital display will turn ON displaying the remaining battery capacity along with the green charging icon

How to Charge the Power Bank

There are two ways to charge the powerbank.

1. Charging via Type-C Input

• Plug your power bank into a power source using a USB-A to Type-C cable.
• Charging indicators will flash to show it's charging. The full charge time is approximately 3.5 hours via Type-C input (20W PD input).

ii. Charging via Solar Power

• Place the powerbank under direct sunlight. It can take up to 5 days to fully charge depending on sunlight intensity. In weaker sunlight, the charging time will increase.

NOTE: Keep in mind that solar charging is slower and primarily serves as an emergency backup.

Important Tips for Solar Charging Performance

• Solar Charging Time: The powerbank can take up to 5 days to fully charge using solar power, depending on sunlight intensity. Position it directly under the sun for optimal charging, avoiding cloudy conditions or obstructions.
• Emergency Backup: Solar power is ideal for emergencies when regular power sources aren't available. However, it's best used as a backup option. For daily charging, prioritize using the Type-C input to maintain the battery's performance.
• Digital Display for Solar Charging: The Digital display blinks indicating that the powerbank is charging via solar power. Keep an eye on the charging percentage to monitor charging progress.
• Optimal Positioning for Solar Charging: Always ensure the solar panel faces direct sunlight. Avoid placing the powerbank under glass or in shaded areas, as this will slow charging significantly.
• Temperature Caution: Ensure good ventilation during solar charging to prevent overheating. Direct sunlight is essential, but ensure air circulation to avoid excessive heat buildup. Recommended temperature range is from 30-40 °C.
• Panel Care: Clean the solar panel regularly to prevent dust and dirt buildup, which can block sunlight and slow down charging.
• Proper Alignment: Do not place the power bank on the ground; instead, position it at a 30-45 degree angle facing the sunlight.
• Sunlight Temperature Awareness: Ensure that the power bank is not exposed to excessive heat from direct sunlight during charging.

Charging Protocols

Supports multiple fast charge protocols like Quick Charge (QC) 2.0/3.0, Power Delivery (PD) 2.0/3.0, VOOC & PPS via USB-A & Type-C port for rapid charge of any device/smartphone.

Product Specifications

• Battery Capacity: 10000mAh
• Input: 20W max (using PD chargers), Solar Input: Up to 8.5W Max.
• Output: Type-C: 20W Max.; USB A (Normal): 18W & (VOOC/DASH/WARP): 22.5W
• Max Output: 22.5W
• Supported Protocols: PD 3.0, QC 3.0, PPS, VOOC
• Self-Charging Time: Up to 3.5 hours using 20W PD chargers
• Solar Panels: 4 inbuilt foldable solar panels
• Chipset Protection: Multi-layers of chipset protection
• Emergency Features: SOS, Flashlight & Digital LED Display
• Compatibility: Type-C & USB-A enabled smartphones and electronic gadgets
• 180 Days Warranty

LED Indicators

Charging the Powerbank

• Connect with a suitable charging source.
• The digital display will show the charging percentage. During charging, the indicator will blink.
• Once fully charged, the blinking will stop, indicating that the power bank is ready for use.

Charging Products with the Powerbank

• Plug your device into the powerbank using a suitable charging cable.
• The digital display will automatically show the charging status.
• When the powerbank reaches 0%, the display will blink before the unit shuts down.

PRECAUTIONS

• Some USB cables that are not compatible with the power bank or can't be used should be avoided, instead, choose or purchase the charging cable of the same mobile brand to get adequate speed.
• When the power bank can't charge digital products, please check whether the charging cable and connectors are connected properly or change the cable. After digital devices are fully charged, please unplug the charging cable timely to avoid power loss.
• Because of the high charge and discharge current, please choose good quality charging cable and connectors.
• Please make sure the power bank is fully charged when using it for the first time. Make sure that the product is fully charged at least once in two or three months.
• During charging the power bank, please unplug the cable within 30 minutes when the power bank is fully charged.
• While using output through a single port, the powerbank delivers maximum power but if dual or more ports are used at the same time, then the power bank will divide power into two or three. For Example: Power Bank maximum Current delivers 3.0A.
• In single port usage, the Power bank will operate in only one parameter whether QC or PD and will provide the output ratio mentioned.
• If all the ports are used in a single phase, then the Power Bank will work on basic parameters and the current will be divided into all the ports.

SAFETY ALERTS AND GUIDELINES

• Keep your Power bank dry and away from moisture and corrosive materials.
• Do not clean your Power bank with harsh chemicals, soaps or detergents. Just wipe it with a soft, water-dampened cloth.
• To prevent fire or shock hazards, do not expose this unit to rain or moisture.
• Do not expose this unit to extremes of temperature.
• Immediately terminate the use of the product if the item bulges, smells or leaks.
• Please recharge the Power bank once a month if not in use to extend the lifetime of the battery.
• Please allow the Power bank to deplete significantly before recharging in order to preserve the lifetime of the battery.
• Check the voltage of the USB devices and power adapters carefully before usage.
• Do not place this unit directly onto furniture surfaces with any type of soft, porous, or sensitive finish. As with any rubber compound made with oils, the rubber finish could cause marks or staining where the product resides.
• Keep your device out of reach of small children to prevent danger.
• Lithium batteries, like all rechargeable batteries, are recyclable and should not be recycled or disposed of in normal household waste. Contact your local government for disposal or recycling practices in your area.
• Keep away from fire, water and excess temperature ( > 45°C ) and too low temperature ( <-20°C).
• Do not dismantle, crush, puncture or short circuit the power bank, or expose it to liquids, fire or an environment where the temperature is above 55°C.
